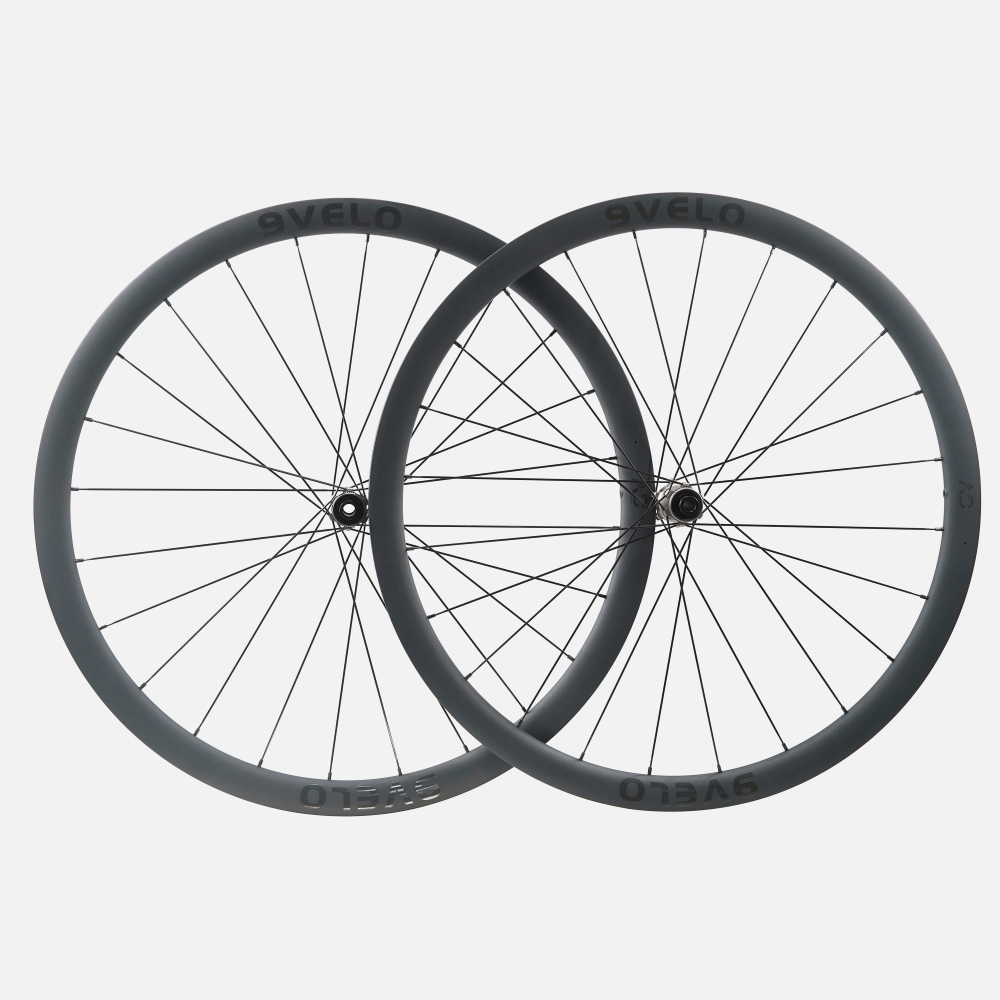

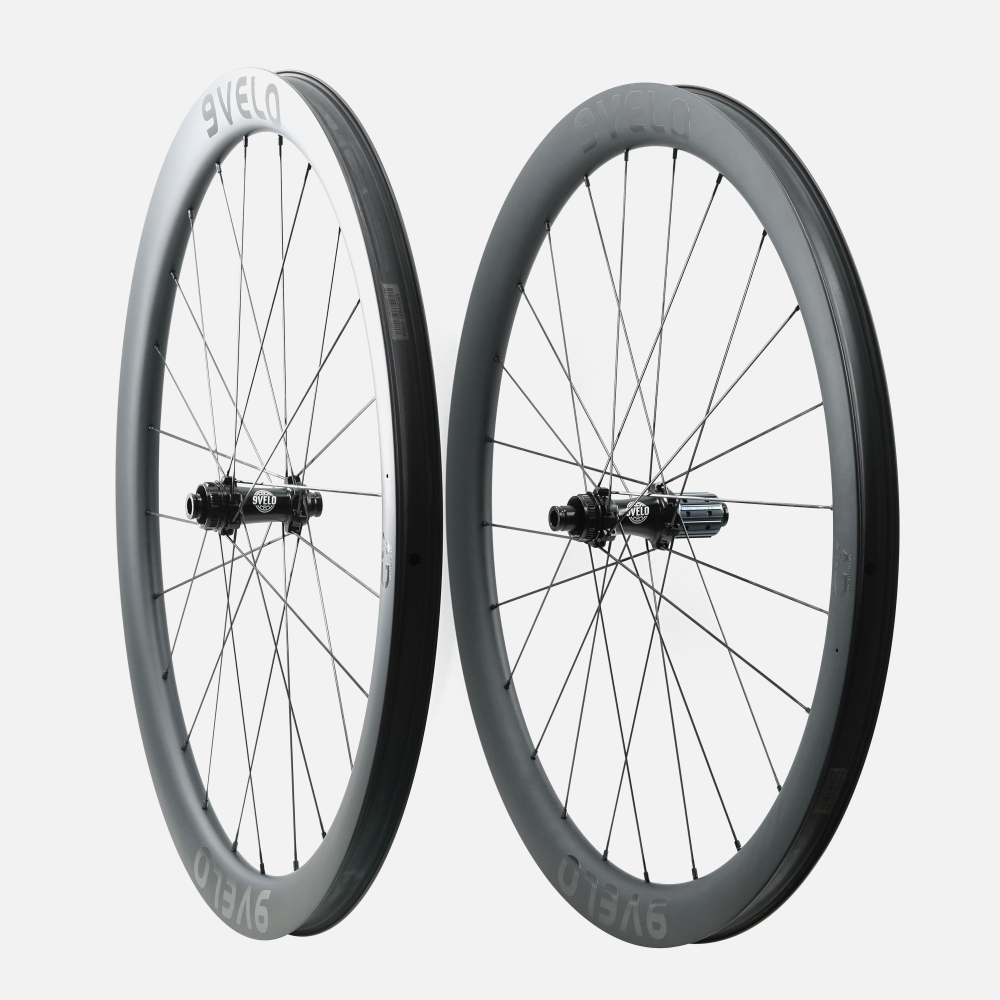

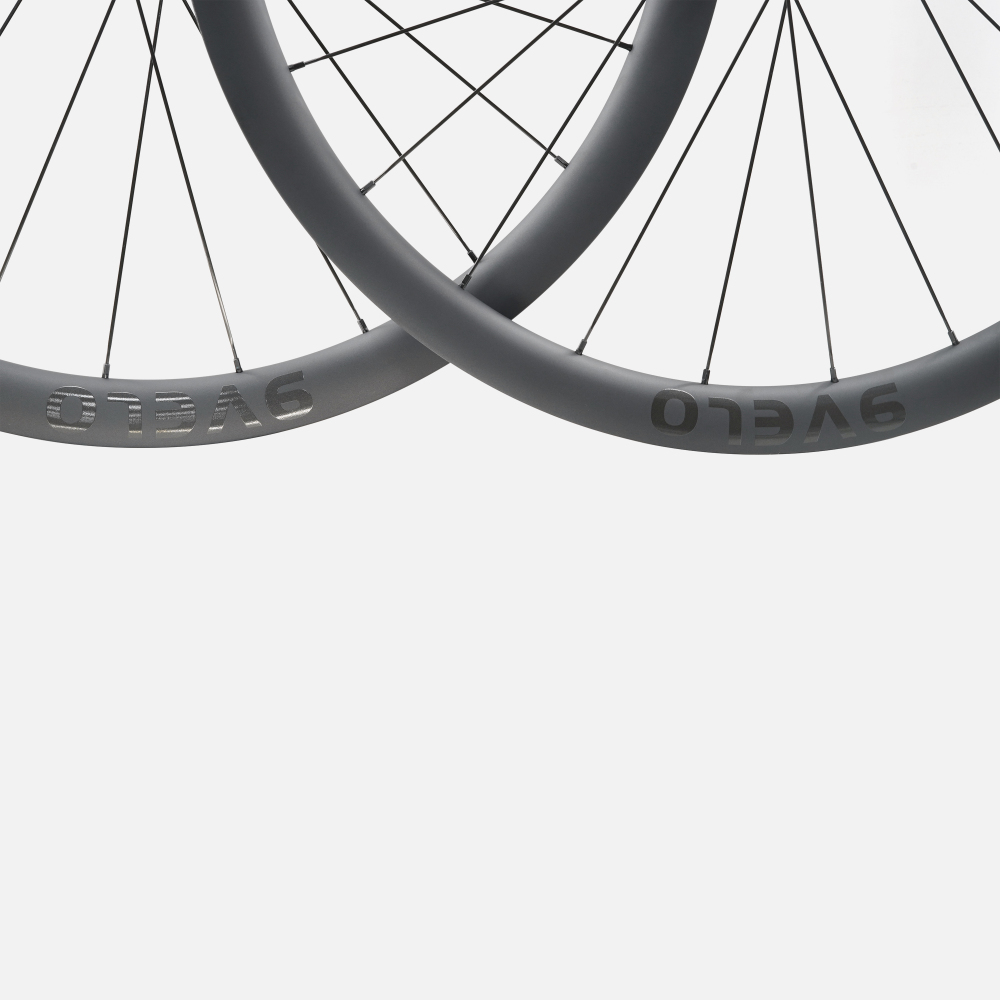

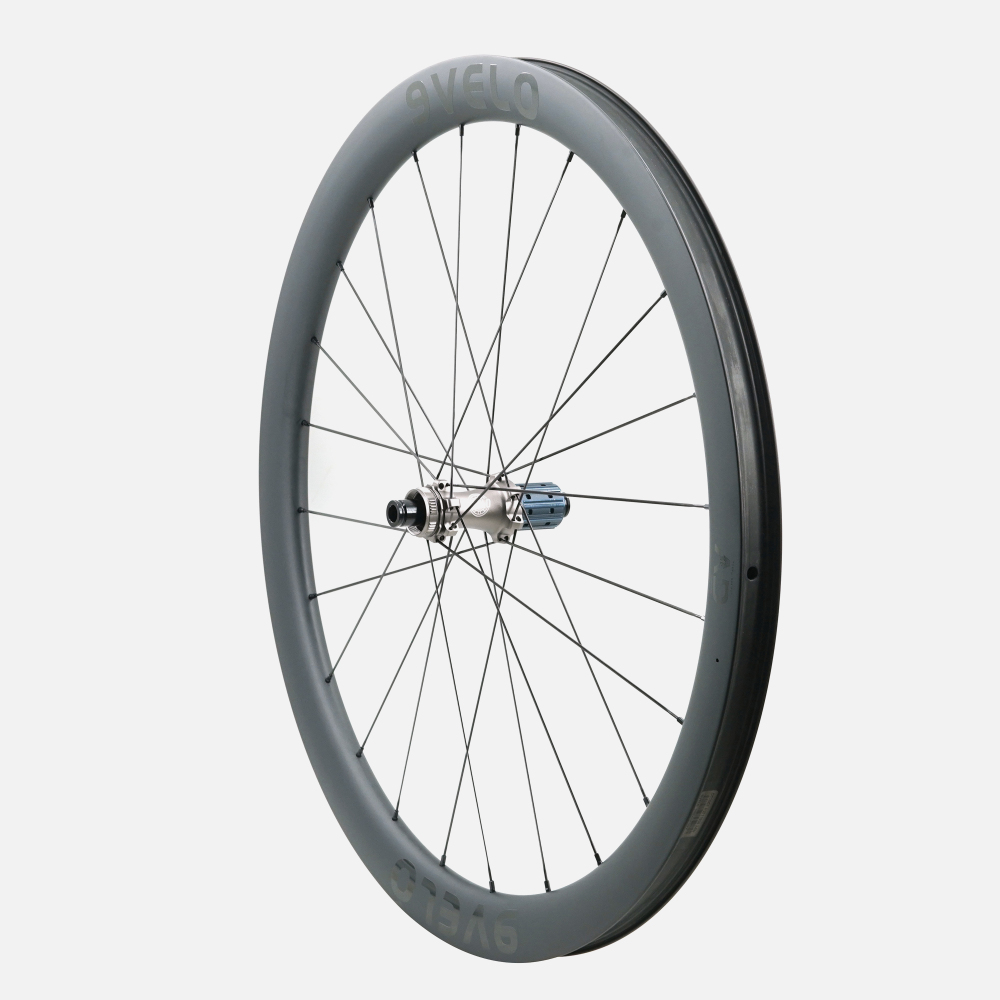

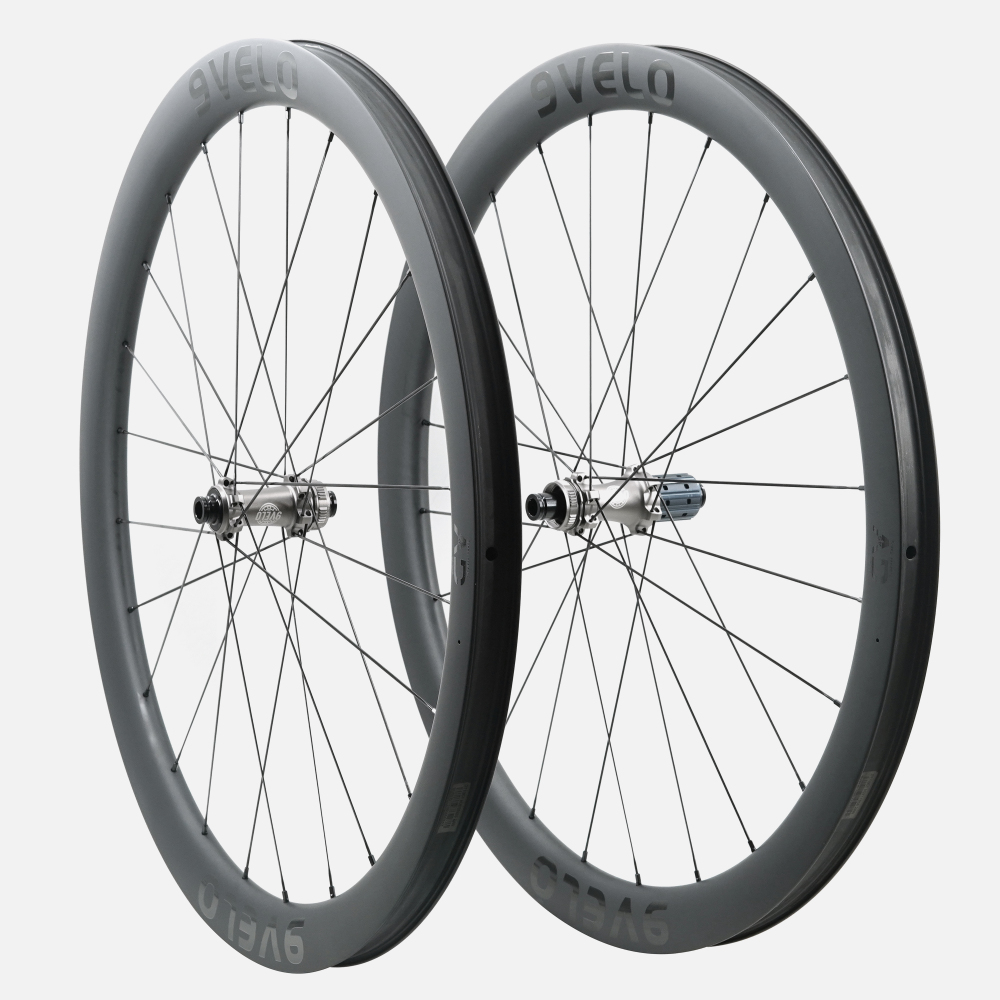

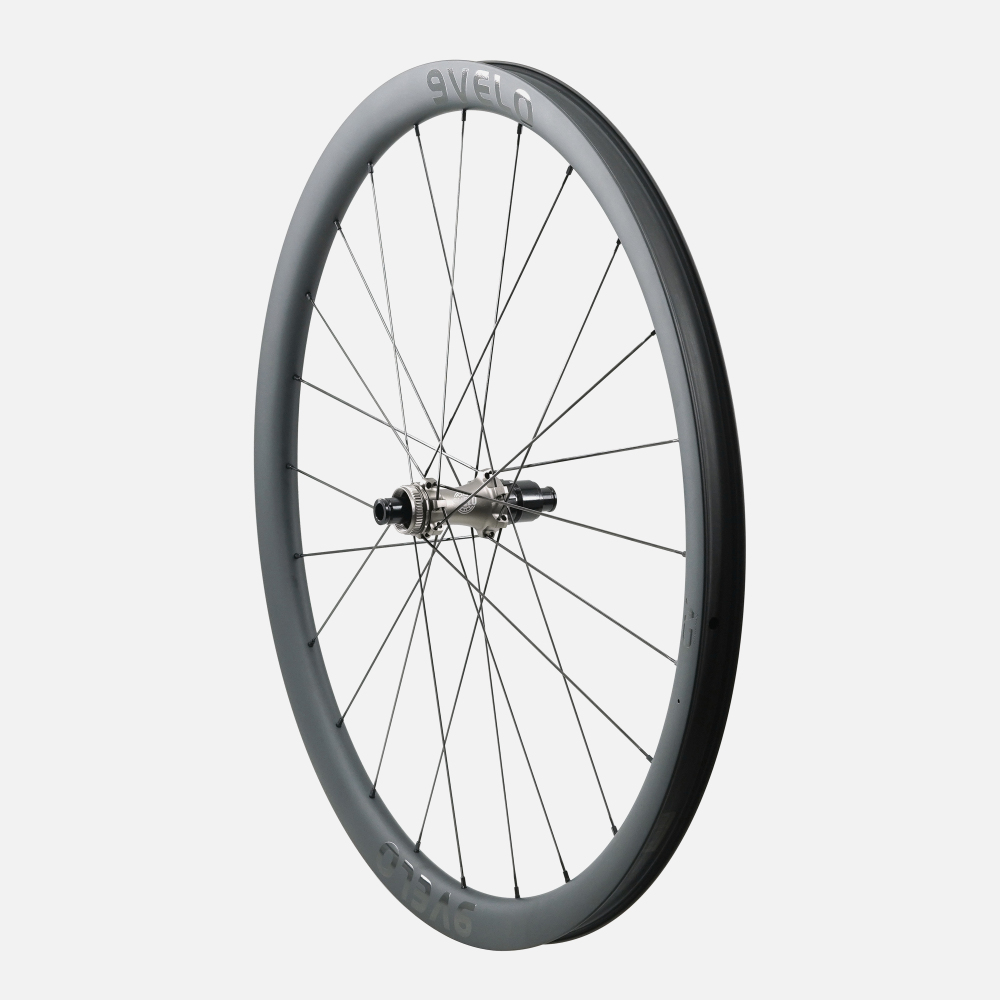

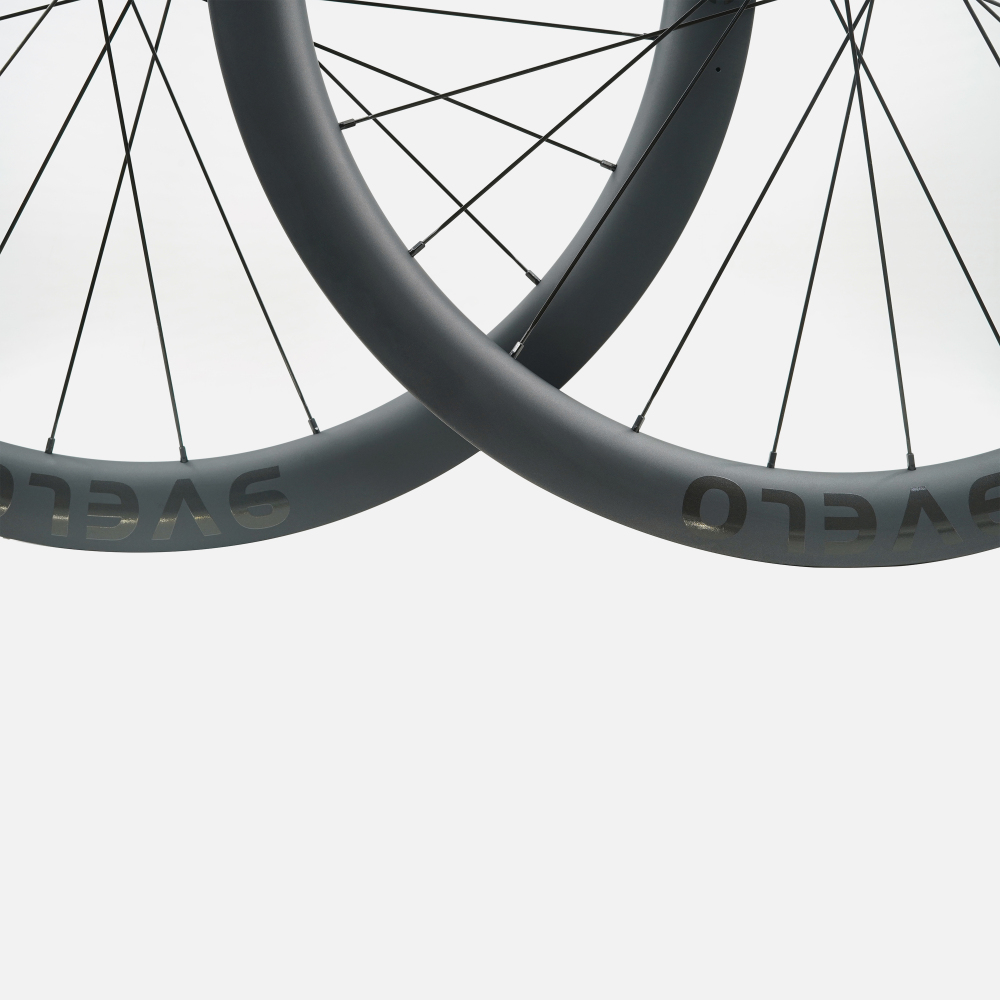

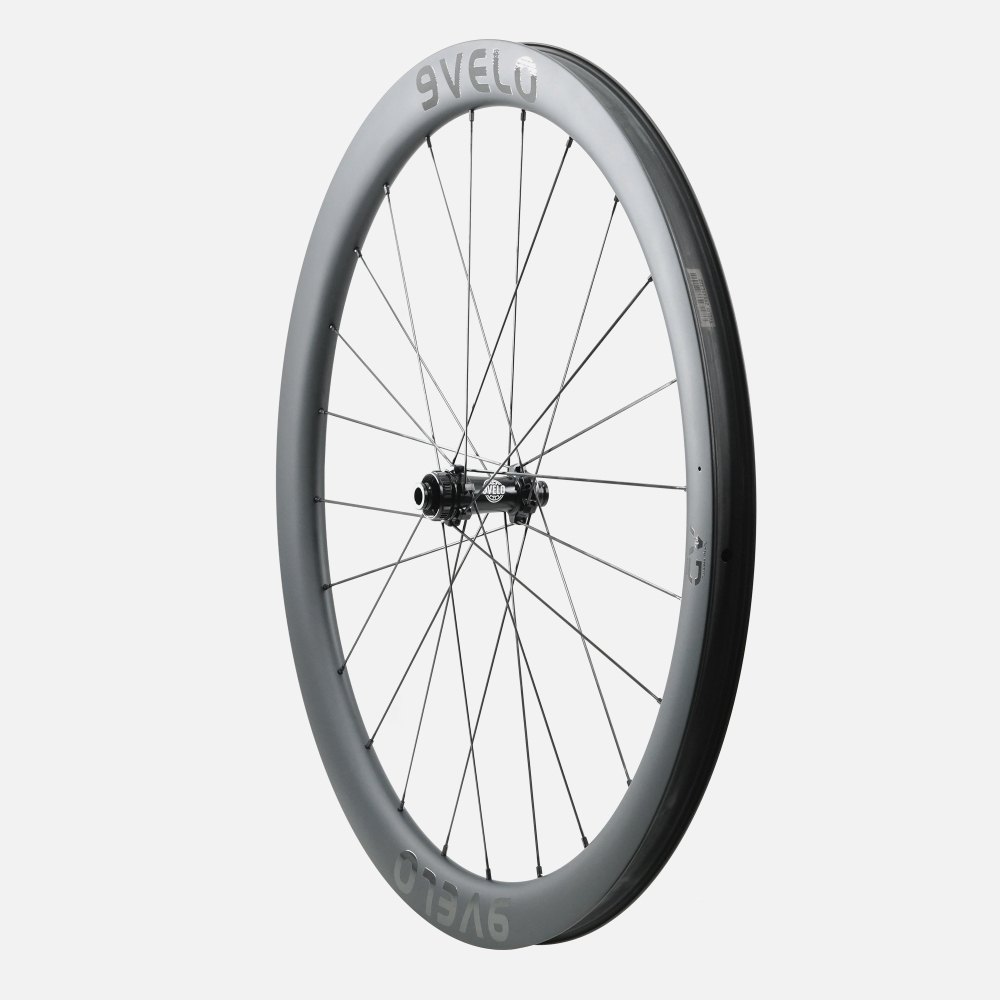

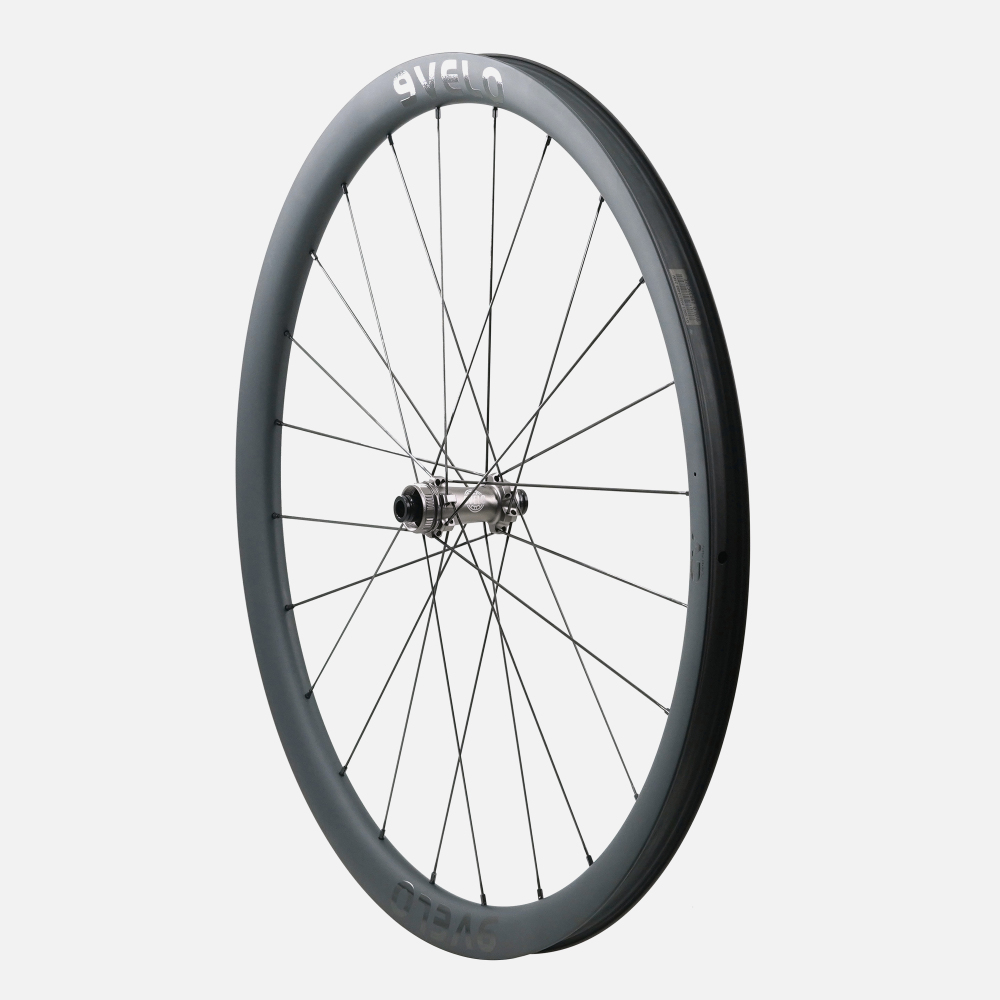

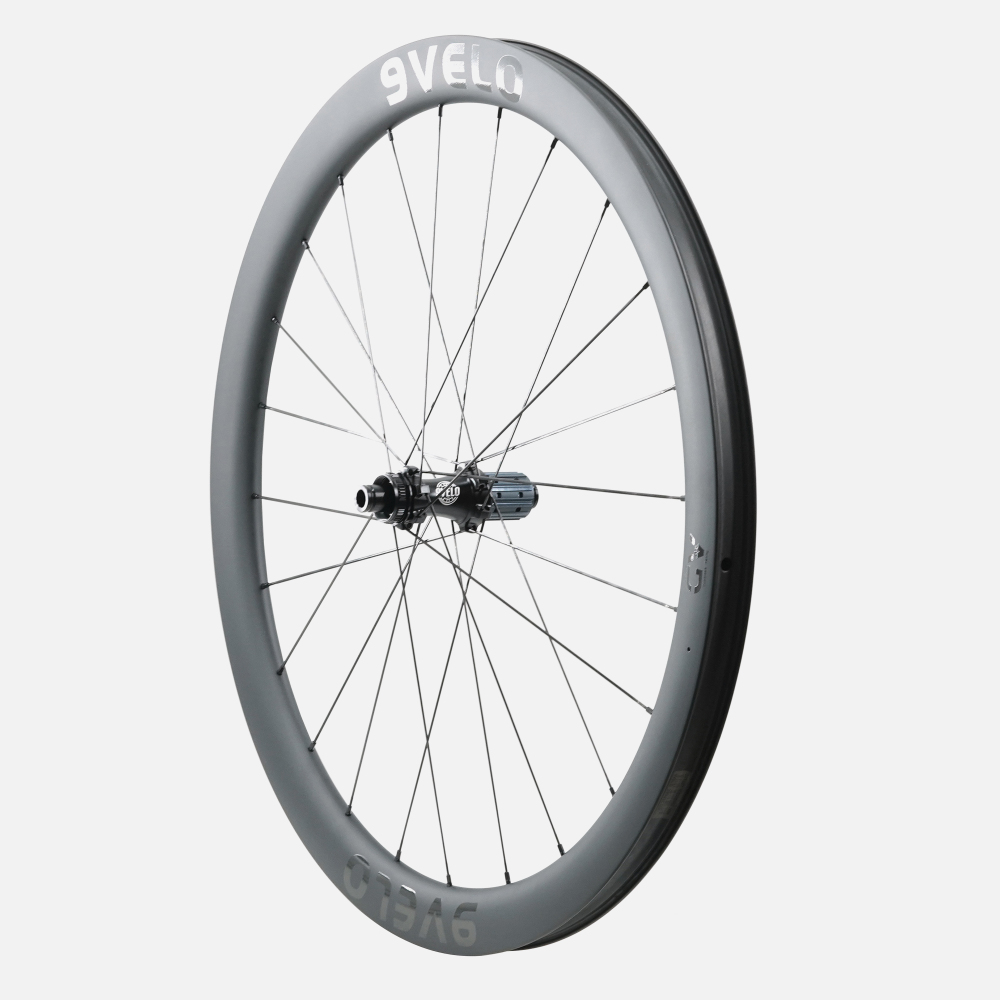

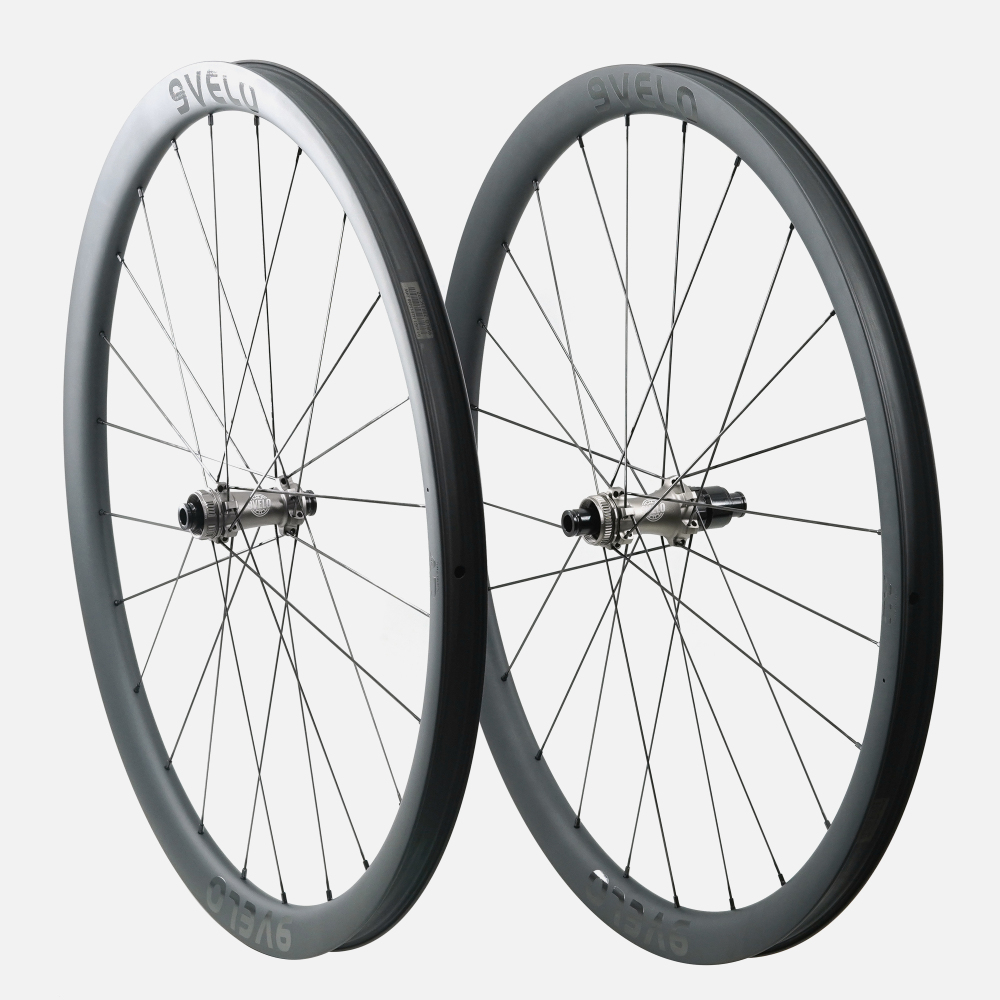

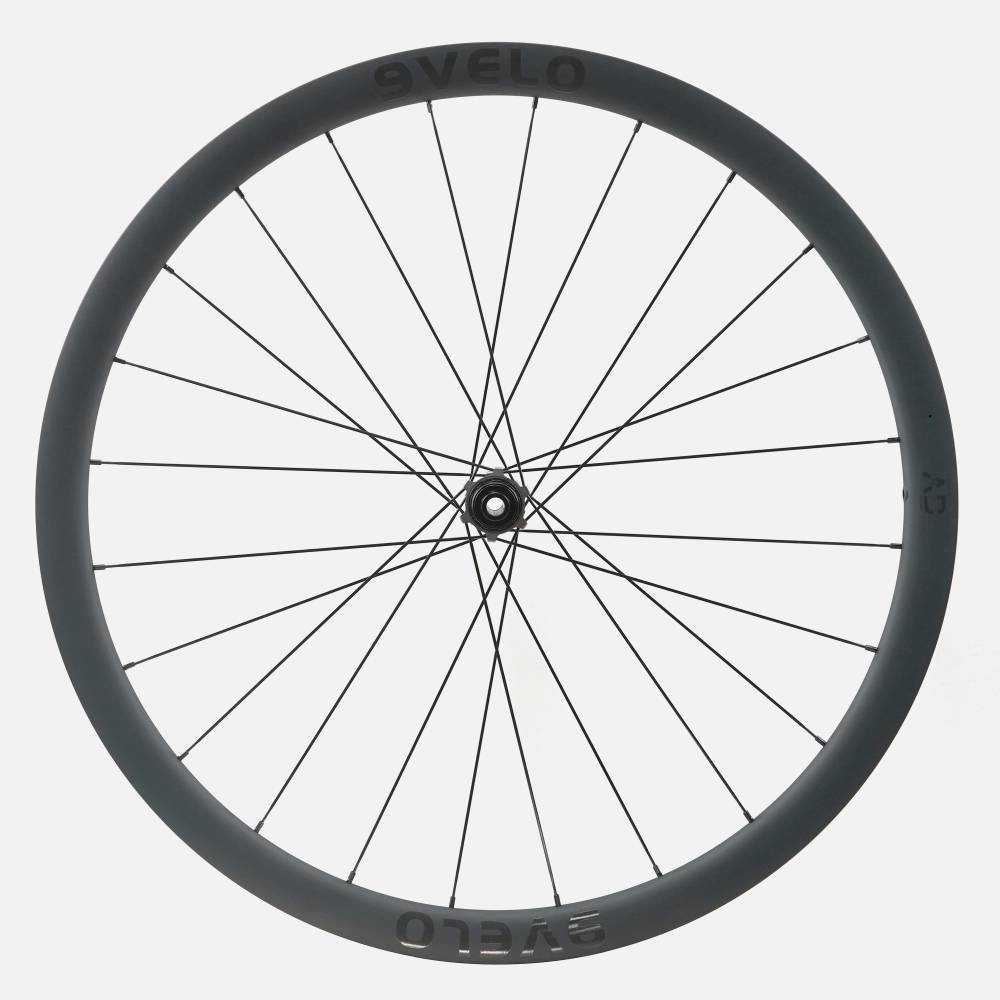

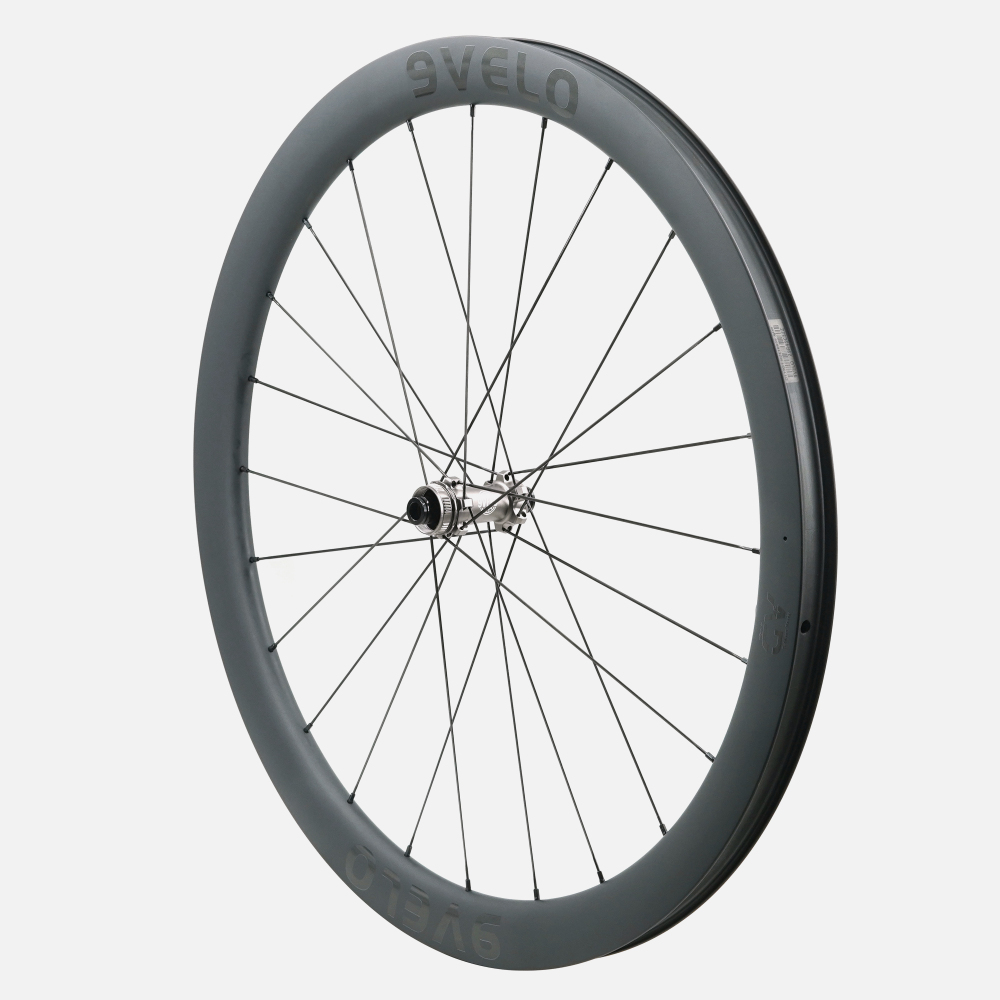

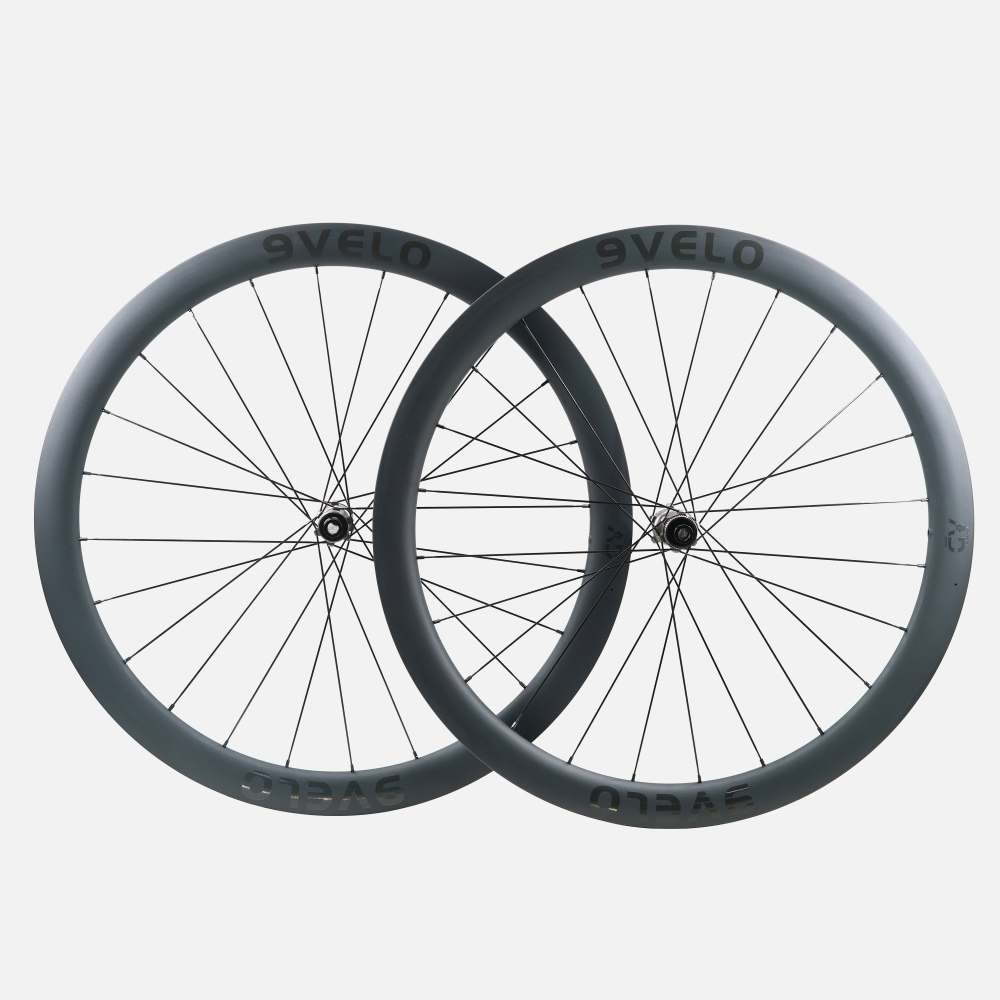

9Velo 2024 Gravel Disc GV 2.0 Series 24H/24H
SKU: GV35 2.0 / Shimano HG 11/12s Compatible / Silver G
"Favorite Gravel GV series now comes with T18 hub"
Logo decals are adjusted to water decals.
*Notice: Standard 1-2 weeks of production lead time before shipping out.
Microspline Road freehub body for GRX 1x groupset's Microspline cassette is available.
Logo decals are adjusted to water decals.
*Notice: Standard 1-2 weeks of production lead time before shipping out.
Microspline Road freehub body for GRX 1x groupset's Microspline cassette is available.
（8 Reviews）
$939.00
$1,159.00
FEATURES

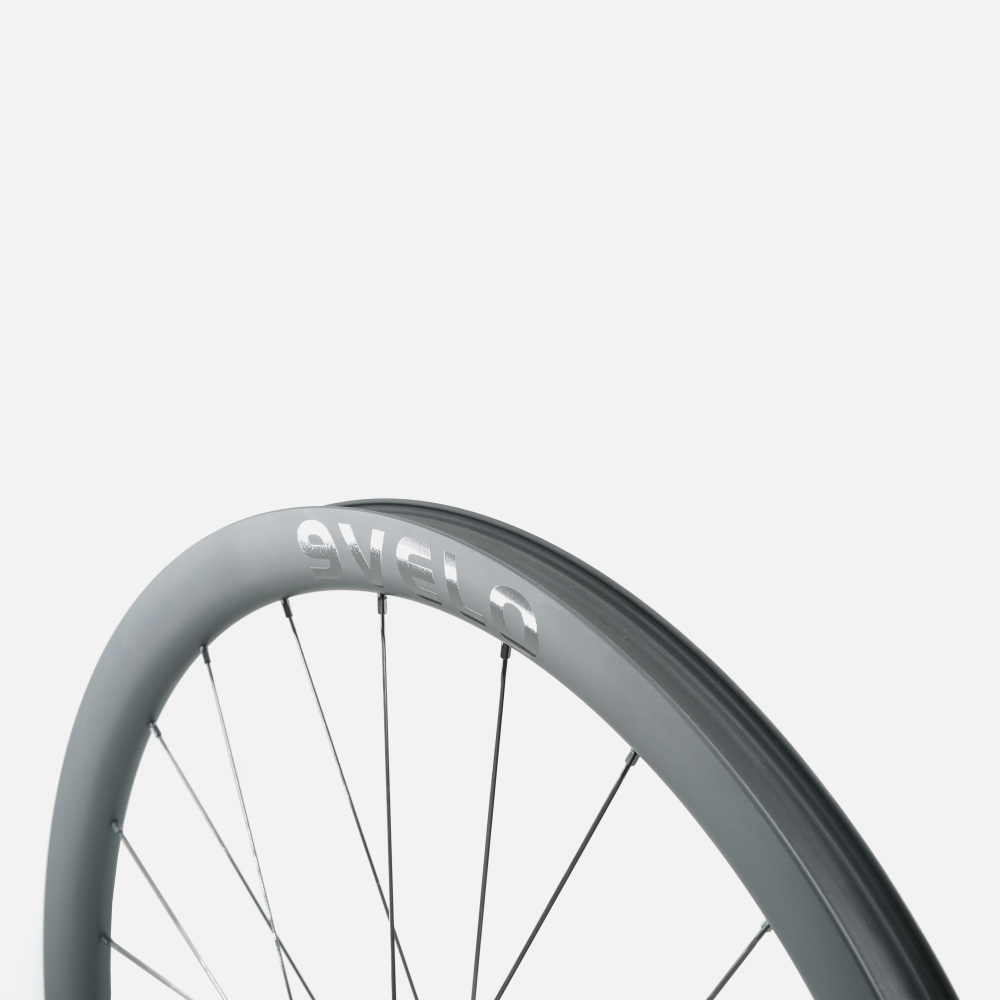

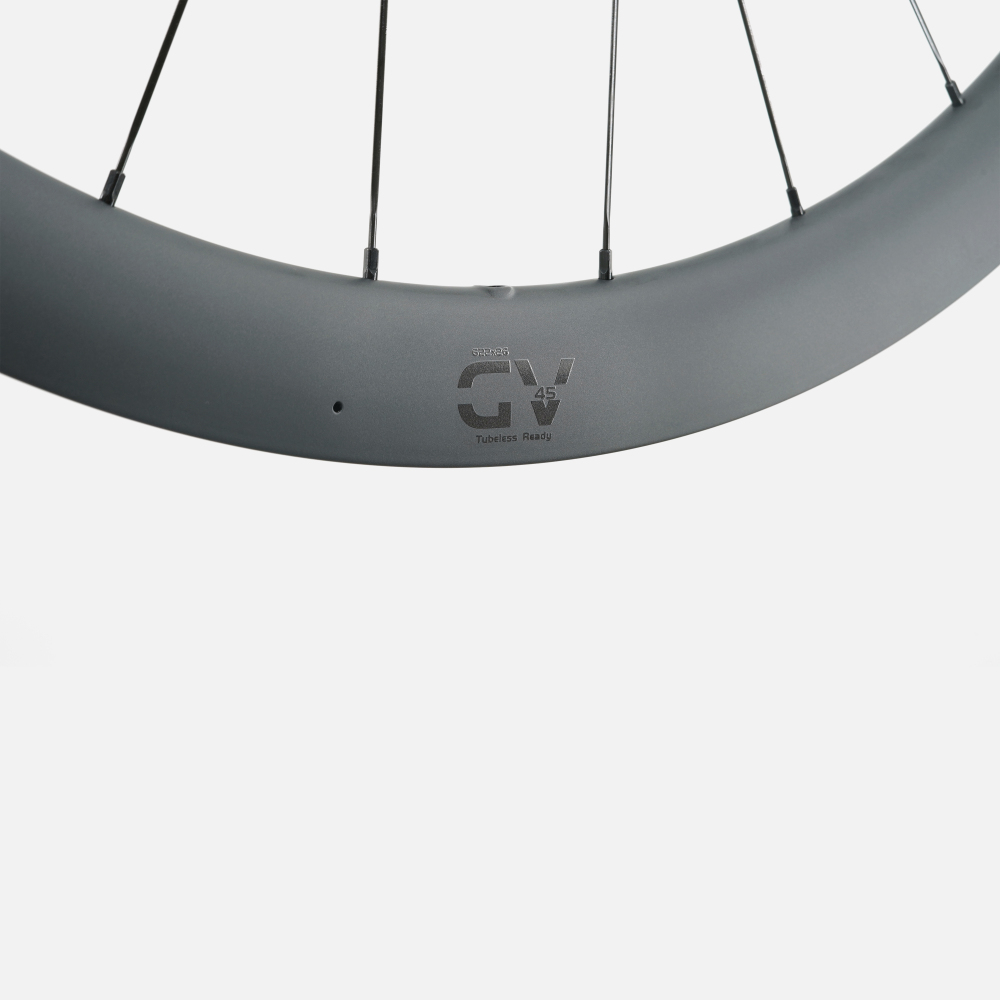

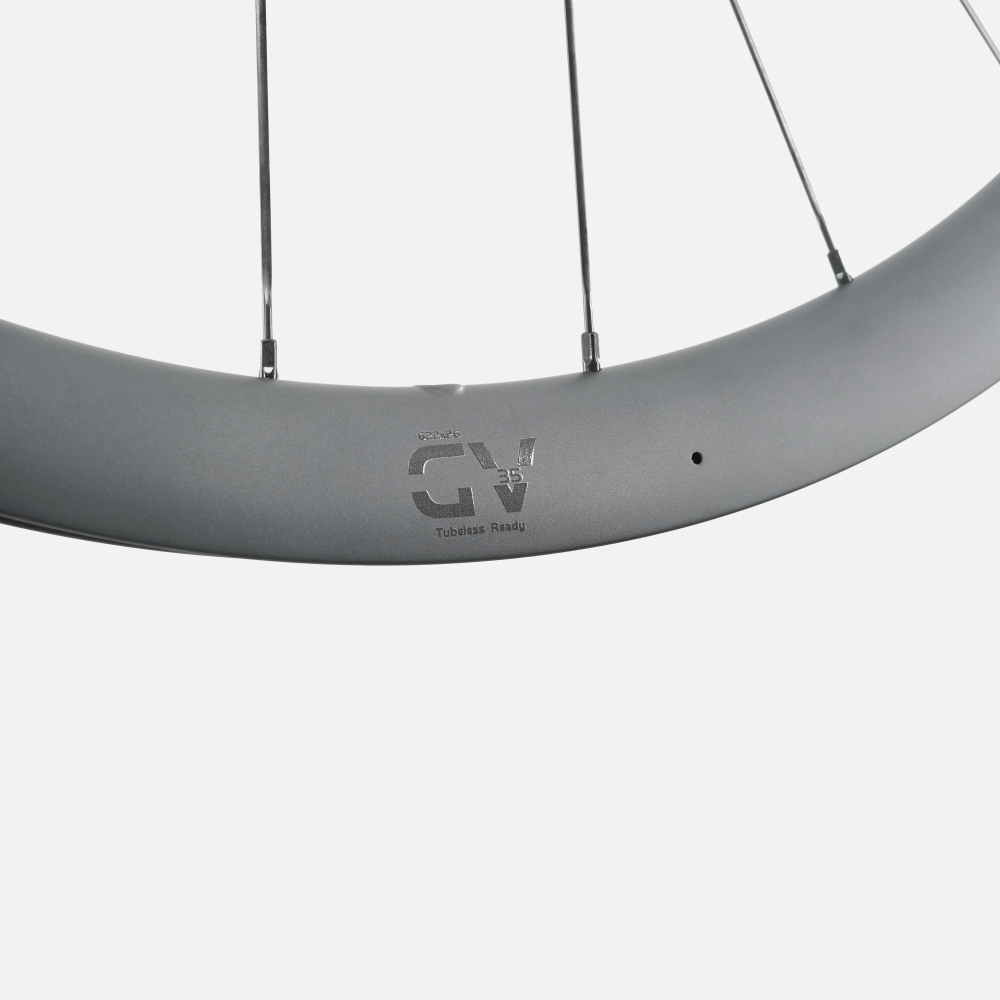

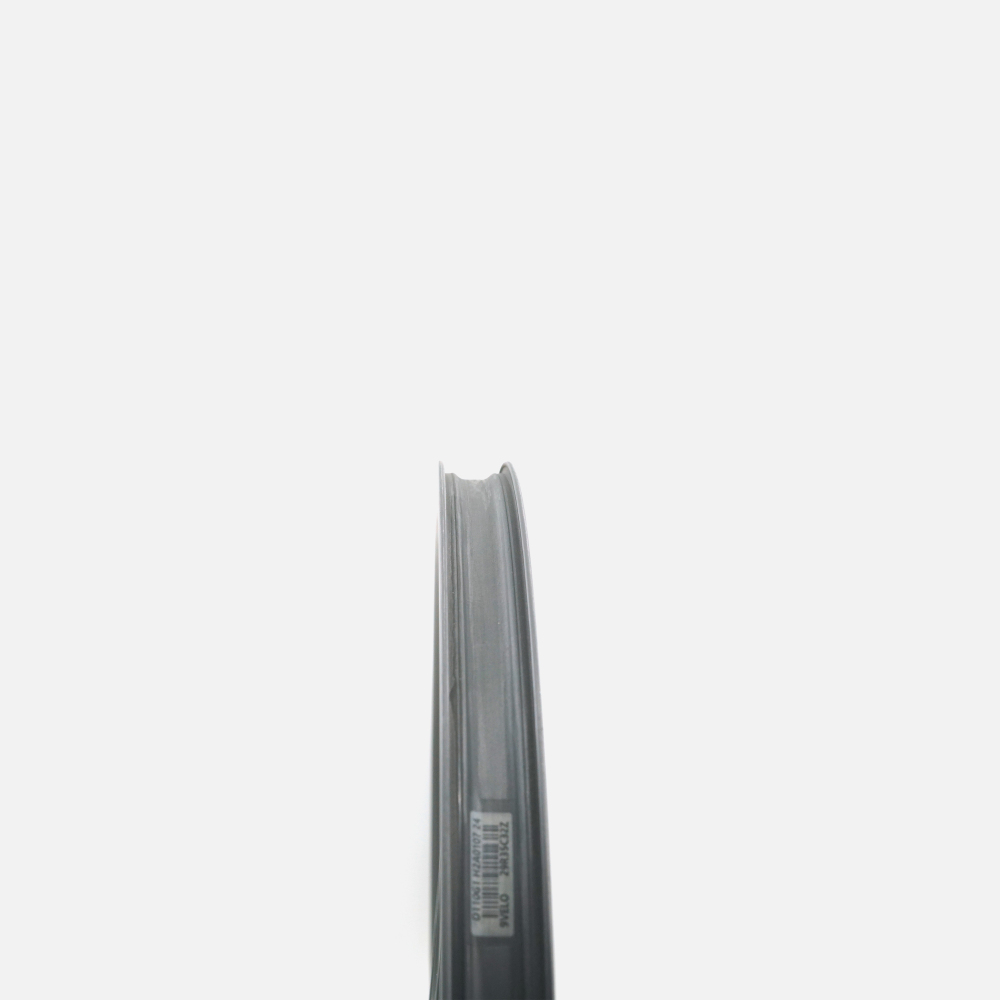

RIM- No holes are drilled on the rim beds, offering convenient tubeless tire installation and saving the weight of tubeless tapes.
- Tubeless/clincher compatibility offers you more choices of tires.
- A 26mm inner width rim can fit wide tires, and decreases the vibration during your gravel journey, providing easier handling and less power loss.
- The gravel-specific carbon layup with high-level precision makes the extraordinary stiffness-to-weight ratio, ensuring your confidence in all road conditions.

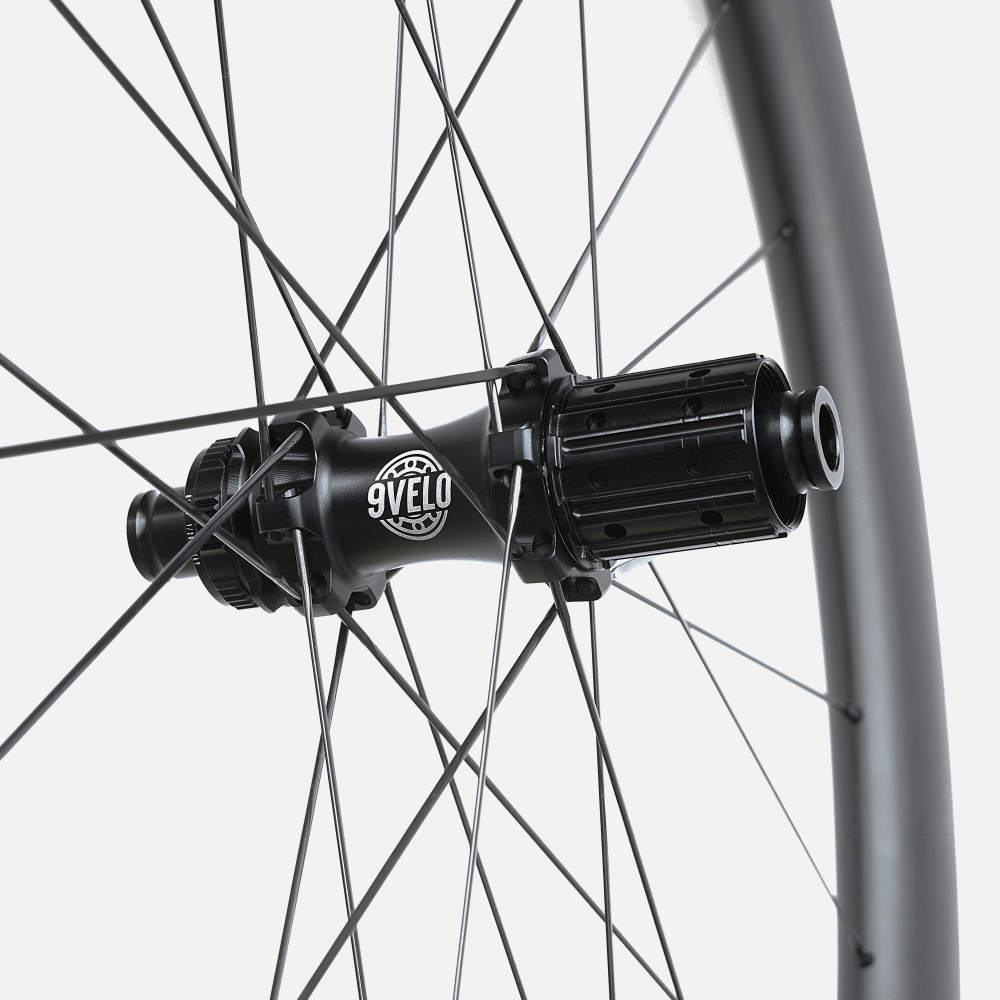

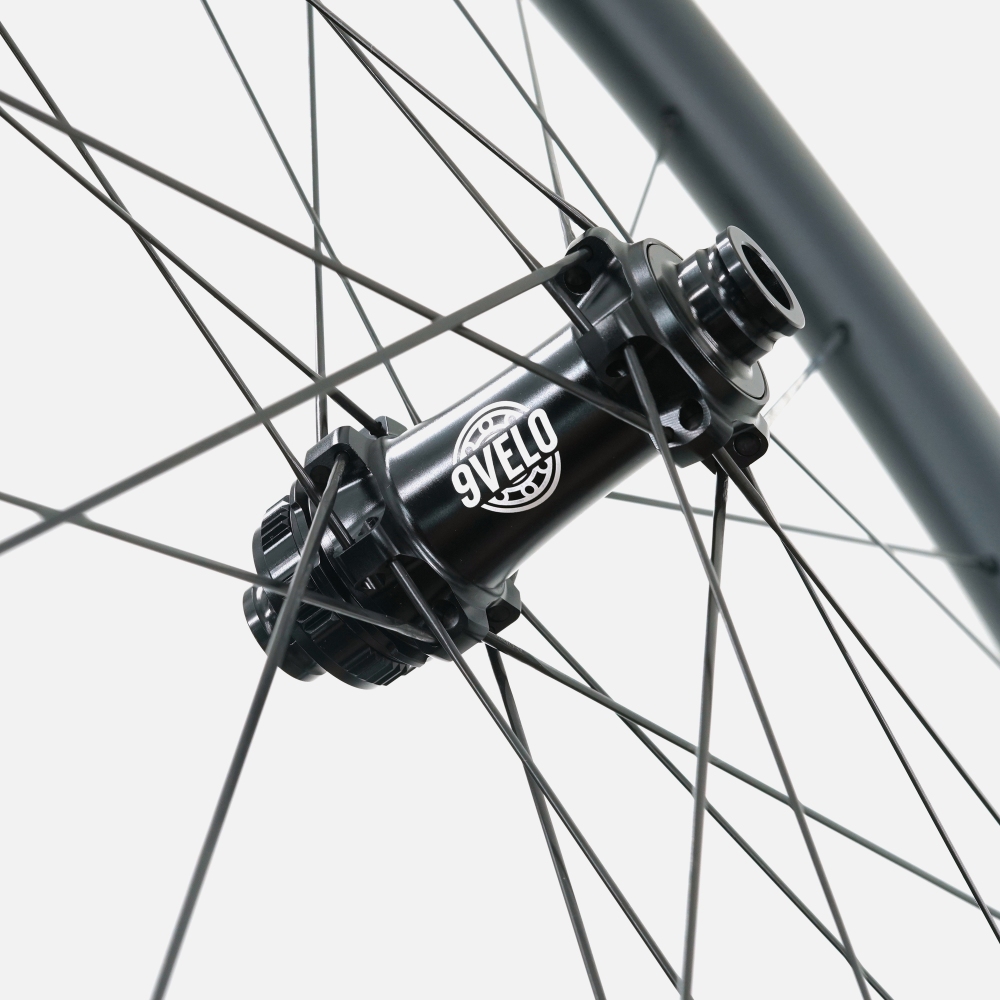

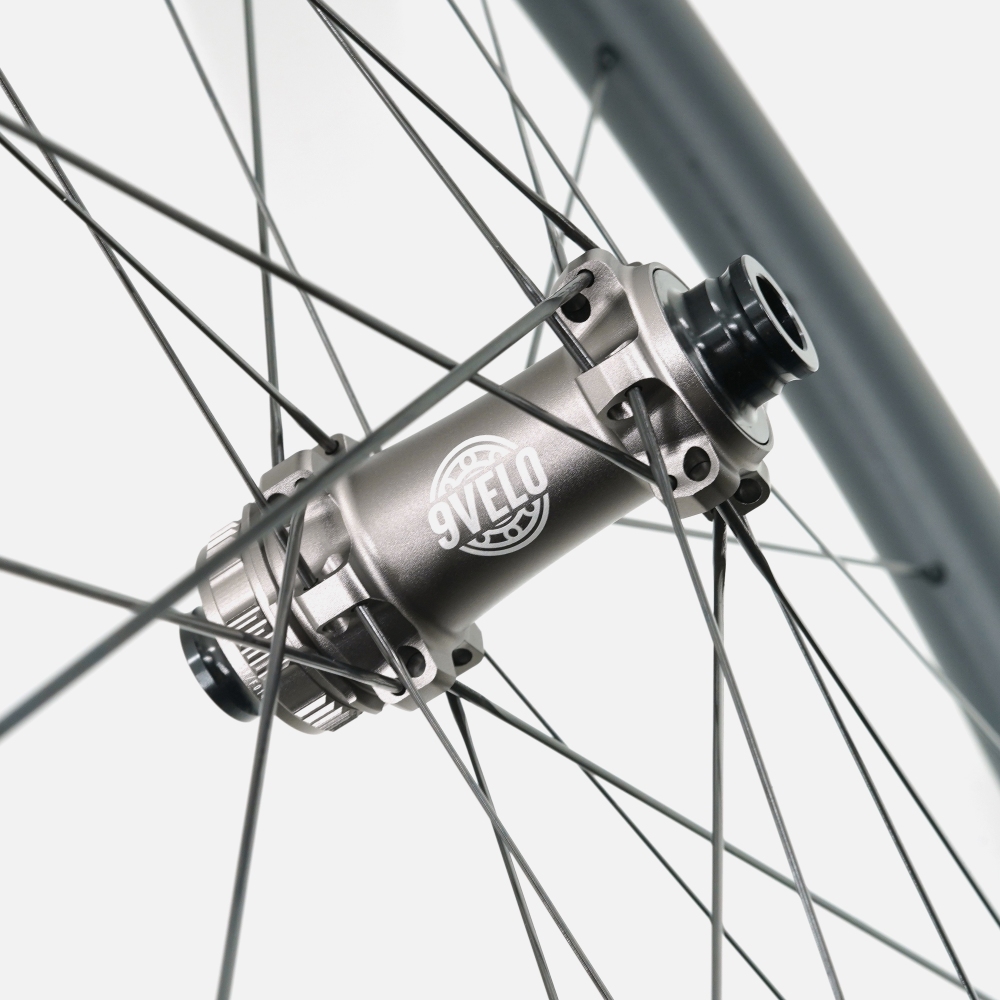

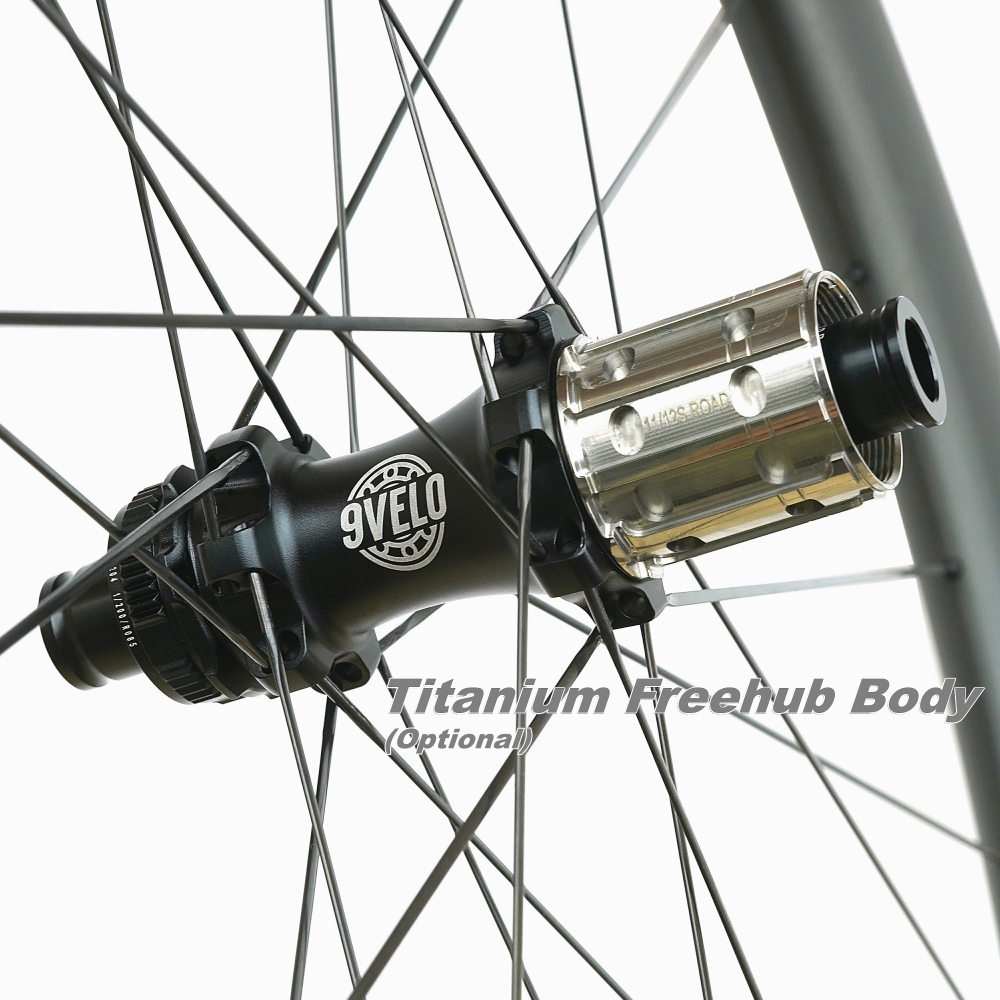

HUB
- A strong hub can make the whole wheel build up to the next level. Specially developed T18 ratchet hubs now are built in the upgraded GV 2.0 series. Hubs are designed and manufactured to match the tolerance of high-quality bearings.
- Ratchet system hubs offer a fast-engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration.
- High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.

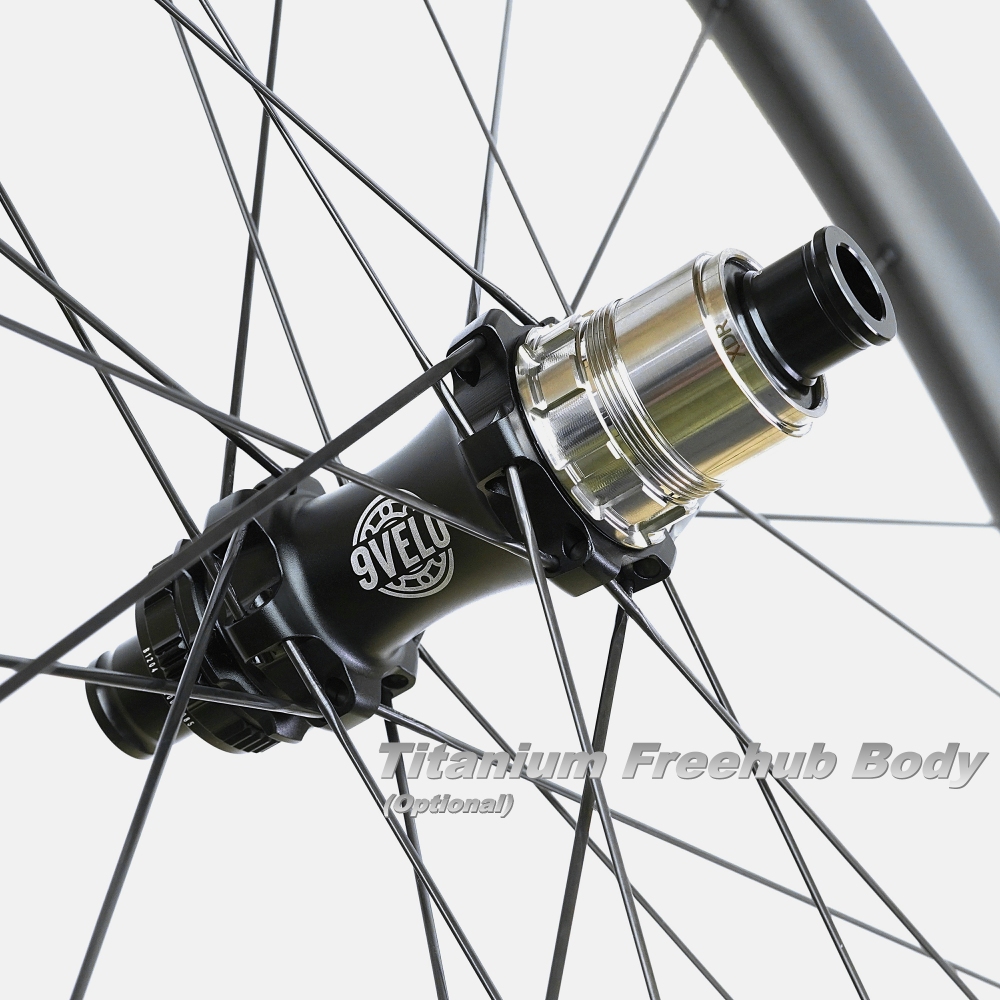

- Lightweight freehub body equipped.
- Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.
SPOKE & NIPPLE
- Well-recognized Sapim CX-Ray spokes provide a balance between stiffness, durability and aero benefits.
SPECIFICATIONS
| Gravel Disc GV 2.0 Series (Model Year 2024) | |||
| Model | GV35 2.0 | GV45 2.0 | |
| Wheel Type | 700C Gravel Wheelset | ||
| Brake Type | Disc Brake | ||
| Tire Compatibility | Tubeless/Clincher Compatible | ||
| Rim Type | Hooked | ||
| Rim Bed | No Holes Drilled | ||
| Rim Finish | UD Matte | ||
| Rim Decal | Dark Gray Logo | ||
| Rim Outer Width | 32mm | 32.4mm | |
| Rim Inner Width | 26mm | ||
| Rim Depth | 35mm | 45mm | |
| Tire Size Range | 700×30c-700×50c | ||
| Spoke Hole Count | 24H/24H | ||
| Spoke | Sapim CX-Ray, 2X front, 2X rear | ||
| Nipple | Sapim SILS | ||
| Hub | 9Velo T18 Hub, Straight Pull (Ratchet System, 36 Teeth), Center Lock, 12*100/12*142 | ||
| Freehub | Shimano/Sram XDR/Campagnolo N3W | ||
| Bearing |
Steel bearings, Front: 6803*2, Rear: 15267*4 (Shimano) / 15267*2, 6802*2 (XDR) |
||
| Rider Weight Limit | 120kg/265lbs | ||
| Weight (Front + Rear)* | 1315g* | 1379g* | |
*Weighted with Shimano Freehub, ±30g
*Specs are subjected to change without notice.
RIM PROFILE
IN THE BOX
- Wheelset
- Tubeless valves
- Spare spokes
- Spare nipples
WHEEL CARE TIPS
Whether it is stainless steel or aluminum alloy spokes, if they are not maintained and taken care of after some rides in the rain and dirt, they will rust, especially if you live on an island, in areas with high temperatures or in humid environments. Therefore, diligent washing (spokes and nipples), drying and maintenance are necessary and can prolong the life of the spokes and nipples.
NineVelo aims to bring you high-level wheels at affordable prices and let you cycle with fun and passion, and we know good rides are backed up with excellent product support. The following is the warranty policy that covers your wheels should you have any unexpected issues.
2-YEAR WARRANTY
At 9Velo we are proud to have the BEST QUALITY CONTROL PROCESS IN THE INDUSTRY. We provide a limited 2-year warranty (consumables not included) for original owners of the 9Velo product beginning from the date of receipt of your wheel. This warranty covers all manufacturing and workmanship defects for the duration of this period.
When a product is confirmed defective and still within the warranty coverage period, it will be replaced or repaired at no replacement or repair charge. The shipping costs of the wheels are borne by us in the case that the defects happen within 6 months after the date of your receipt; and in the event of defects happening beyond 6 months after the date of the receipt, this shipping fee is borne by the customer.
LIFETIME REPAIR SUPPORT
We provide lifetime repair service with some extra charge based on the different cases.
EXCEPTIONS TO THE 2-YEAR WARRANTY
The above warranty, or any implied warranty, does not cover:
。Normal wear and tear on parts.
。Consumable components including spokes, nipples, brake pads and brake track.
。Damage while using non-approved brake pads or tires on your product.
。Not the original owner of the wheelset.
。Modifications of the product from its original condition.
。Malicious damage and inappropriate usage.
WARRANTY PROCEDURE
If you are the original owner of 9Velo wheels and suspect any defects or malfunctions, please
。Stop using and riding on it immediately.
。Contact 9Velo and provide proof of purchase and any necessary evidence about the defects or malfunctions for the assessment.
。We will reply to you and progress as soon as possible.
CRASH REPLACEMENT PROGRAM
We understand that crash suffers, and being not supported even suffers more. If your 9Velo wheels are damaged as a result of a crash, 9Velo Crash Replacement Program is here to help you back to cycling smoothly.
All 9Velo wheelsets are covered with the lifetime crash replacement policy. This policy can be used to obtain a discounted replacement product if non-warranty damage occurs while riding your bike.
